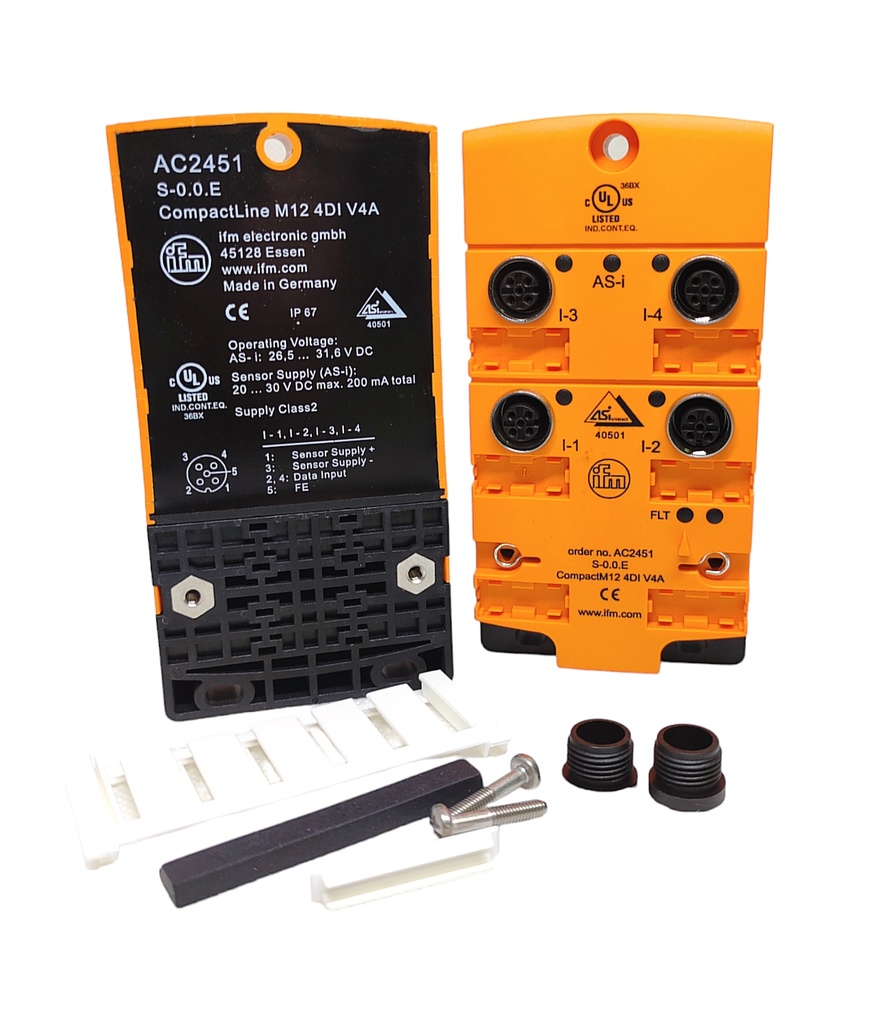

Modulis IFM Electronic AC2451

https://ariteh.eu/web/image/product.template/638/image_1920?unique=73c253d

Active CompactLine module, AS-i flat cable connection, 4 inputs, IR addressing possible, Metal parts from stainless steel, Sockets M12 x 1, Digital inputs
Housing materials: PA, socket: stainless steel 316L / 1.4404, threaded inserts in the lower part: stainless steel 316L / 1.4404, screws: stainless steel (1.4578/316LCu), Piercing contacts: CuSn6 surface nickel and tin-plated, O-Ring (socket): EPDM
Voltage range: 20...30 DC V
Product Name: AC2451
Error: LED Red
Protection: IP 67, (enclosure type 1), when flat cables E7400x and E7401x are used
Circuit: PNP
Ambient temperature: -25...80 °C
Electrical design: 4 inputs
Operation: LED green
SKU KJY3FM0AYYO8RI
Operating voltage: 26.5...31.6 V DC
Total current consumption from AS-i: < 250 mA
Sensor supply: AS-i
Shortcode: CompactModule 4DI M12 V4A
Function display: LED yellow

95,00 EUR 95.0 EUR 95,00 EUR bez PVN

95,00 EUR bez PVN

Par cenu zvanīt

  • Zīmols
  • Stāvoklis

This combination does not exist.

Zīmols: IFM Electronic
Stāvoklis: Jauns
