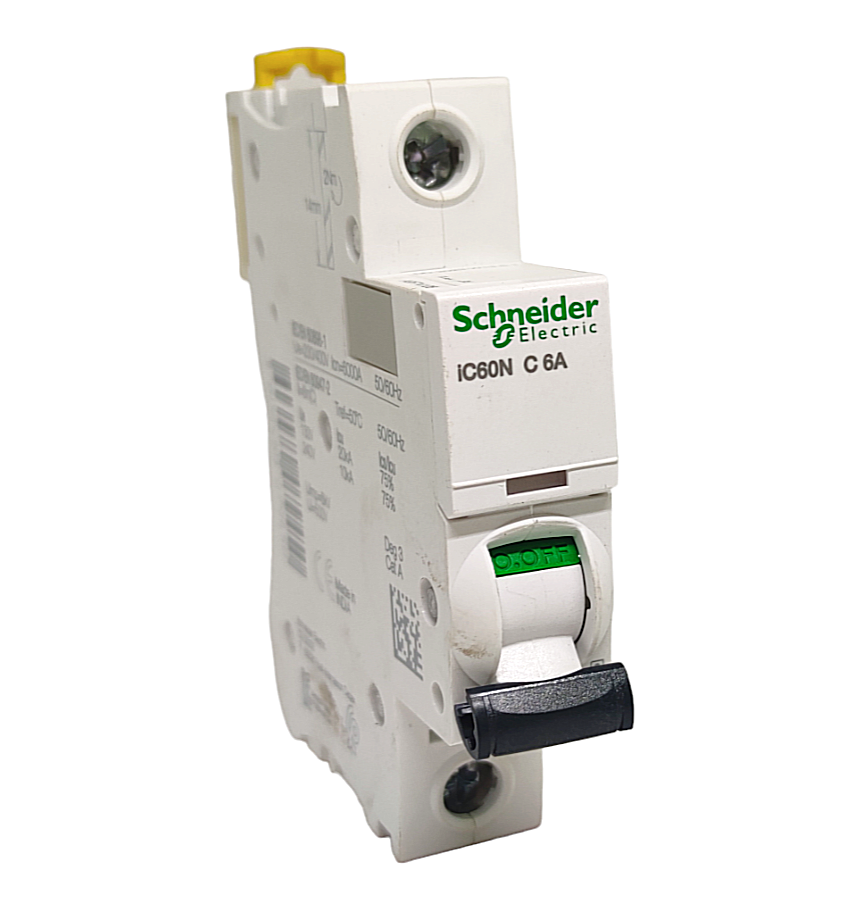

Miniature circuit breaker (MCB), Acti9 iC60N, 1P, 6A, C curve, 6000A

https://ariteh.eu/web/image/product.template/528/image_1920?unique=8402b86

A9F74106
This Acti9 iC60a is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 6A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 6kA at 220VAC to 240VAC conforming to EN/IEC 60947-2 standard and 4500A at 230VAC conforming to EN/IEC 60898-1 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker protects circuit against short circuit and overload current. Its unique VisiTrip indicator reduces intervention time by showing the faulty circuit. Its VisiSafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast closing mechanism independent of manual operation improves its service life. The Ui rated insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. It has an IP20 B degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -35°C to 70°C. The storage temperature is -40°C to 85°C.

5,00 EUR 5.0 EUR 5,00 EUR bez PVN

5,00 EUR bez PVN

Par cenu zvanīt

  • Zīmols
  • Stāvoklis

This combination does not exist.

Zīmols: SCHNEIDER ELECTRIC
Stāvoklis: Jauns
