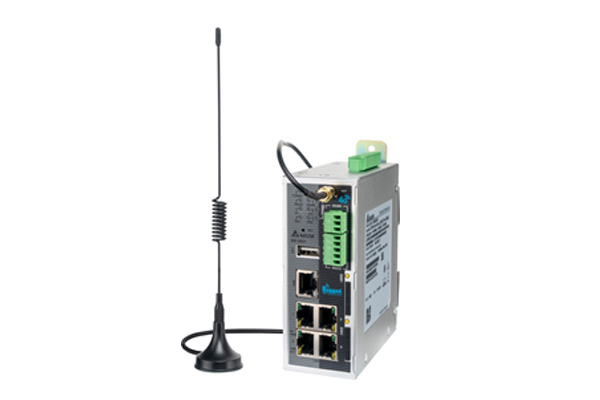

DX-3021L9 Series 4G/WAN DIACloud VPN Router
A data acquisition equipment connected to cloud servers. Supports a two-way data collection channel between the devices and the cloud.
Supports MODBUS TCP, MODBUS ASCII/RTU, Mitsubishi MC and Siemens TCP protocol
Dual SIM dual standby technology, auto-switching between cellular operators without restarting devices
Various peripheral interfaces include RS-485, RS-232 and 4 LAN ports
Built-in DI/DO allows users to trigger warning by specific events
Custom alarm conditions with email alerts
USB port is compatiable with the 3rd party Wi-Fi USB adapter to add WLAN interface as Wi-Fi client (only Realtek RTL8192EU driver supported)
Built-in RTC and supports NTP time synchronization over a network
Firewall function: Stateful Packet Inspection (SPI), prevent denial of service (DoS) attacks, MAC address filter and IP port filter
Supports TCP/IP, UDP, ICMP, DHCP, HTTP, DNS and SSH protocols
Device configurations import/export
Network data flow statistics
Networking failure diagnostics
Device and PLC interlocking
Universal LTE-FDD and LTE-TDD frequency bands, backward compatible with WCDMA/GSM/GPRS/EDGE 2G networks.
LTE data transmission rate up to 150Mbps (downlink) / 50Mbps (uplink)
Automatic APN parameter matching and connection redial
20200529165646.pdf
Specifications
| Stiprinājums | DIN vai Wall |
| Izmērs (LxWxH) | 145.3 x 45 x 115.7 mm |
| Svars kg | 0,32 |
