A data acquisition equipment connected to cloud servers. Supports a two-way data collection channel between the devices and the cloud.
Supports MODBUS TCP, MODBUS ASCII/RTU, Mitsubishi MC and Siemens TCP protocol
Dual SIM dual standby technology, auto-switching between cellular operators without restarting devices
Various peripheral interfaces include RS-485, RS-232 and 4 LAN ports
Built-in DI/DO allows users to trigger warning by specific events
Custom alarm conditions with email alerts
USB port is compatiable with the 3rd party Wi-Fi USB adapter to add WLAN interface as Wi-Fi client (only Realtek RTL8192EU driver supported)
Built-in RTC and supports NTP time synchronization over a network
Firewall function: Stateful Packet Inspection (SPI), prevent denial of service (DoS) attacks, MAC address filter and IP port filter
Supports TCP/IP, UDP, ICMP, DHCP, HTTP, DNS and SSH protocols
Device configurations import/export
Network data flow statistics
Networking failure diagnostics
Device and PLC interlocking
Universal LTE-FDD and LTE-TDD frequency bands, backward compatible with WCDMA/GSM/GPRS/EDGE 2G networks.
LTE data transmission rate up to 150Mbps (downlink) / 50Mbps (uplink)
Automatic APN parameter matching and connection redial

Features & Benefits
A data acquisition equipment connected to cloud servers. Supports a two-way data collection channel between the devices and the cloud.
Supports MODBUS TCP, MODBUS ASCII/RTU, Mitsubishi MC and Siemens TCP protocol
Dual SIM dual standby technology, auto-switching between cellular operators without restarting devices
Various peripheral interfaces include RS-485, RS-232 and 4 LAN ports
Built-in DI/DO allows users to trigger warning by specific events
Custom alarm conditions with email alerts
USB port is compatiable with the 3rd party Wi-Fi USB adapter to add WLAN interface as Wi-Fi client (only Realtek RTL8192EU driver supported)
Built-in RTC and supports NTP time synchronization over a network
Firewall function: Stateful Packet Inspection (SPI), prevent denial of service (DoS) attacks, MAC address filter and IP port filter
Supports TCP/IP, UDP, ICMP, DHCP, HTTP, DNS and SSH protocols
Device configurations import/export
Network data flow statistics
Networking failure diagnostics
Device and PLC interlocking
Universal LTE-FDD and LTE-TDD frequency bands, backward compatible with WCDMA/GSM/GPRS/EDGE 2G networks.
LTE data transmission rate up to 150Mbps (downlink) / 50Mbps (uplink)
Automatic APN parameter matching and connection redial

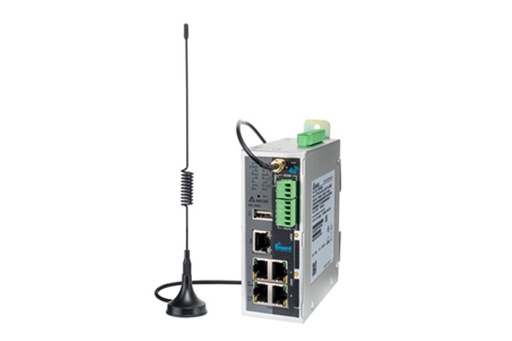

4G DIACloud Router DX-3021L9 is used for efficient and secure industrial automation communications between field devices and cloud servers. Infrastructure, factory and building facility operations managers in Southeast Asia now have a flexible and rugged wireless router to monitor and remote control both indoor and outdoor automated operations.

Operators can use the universal RF band Cloud Router DX-3021L9 in a variety of applications including monitoring water levels in rivers and canals and in water stations or transformer operation. This rugged wireless router can operate in temperatures of -20 to 70 degrees Celsius and has UL 61010 safety approval for reliable two-way data collection from field devices to the cloud.

The DX-3021L9 router gives users a secure tunnel between to their remote devices via Delta’s DIACloud cloud servers, without the need of a VPN server. It supports a wide range of industry protocols with LTE data transmission rate up to 150Mbps (downlink) / 50Mbps (uplink). For maximum performance, users can pair it with Delta’s industrial power supplies like DVP/CliQ/PMC Series 12/24 VDC or CliQII/PMC Series 48 VDC.
