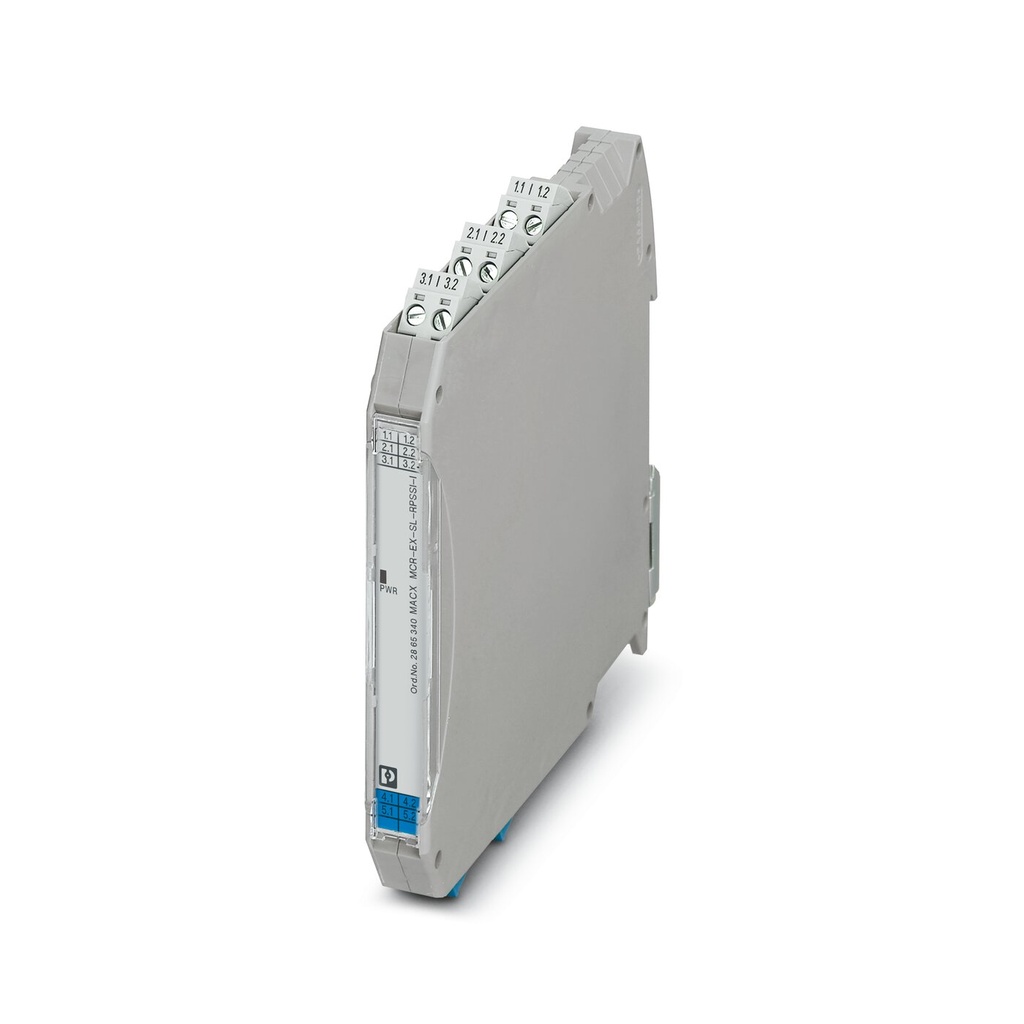

MACX MCR-EX-SL-RPSSI-I(-SP)
Repeater power supply and input isolating amplifier,
Ex i
Description
Repeater power supply and input isolating amplifier,
Ex i
MACX MCR-EX-SL-RPSSI-I(-SP)
© PHOENIX CONTACT
Data sheet
The repeater power supply and input signal conditioner is
designed for the intrinsically safe (Ex i) and electrically
isolated operation of measuring transducers and mA current
sources installed in the hazardous area.
2-wire measuring transducers are supplied with energy via
a powered input with intrinsic safety.
4-wire measuring transducers and mA current sources can
be operated via a non-powered input.
The analog 0/4 ... 20 mA measured value from the
hazardous area is electrically isolated 1:1 when transmitted
to the non-hazardous area.
You can operate the output of the module actively or passively.
The analog measured value on the Ex or non-Ex side can be
overlayed with digital (HART) communication signals and
transmitted bidirectionally.
You can connect additional resistance in the output circuit in
order to increase the HART impedance in low-ohmic
systems using a terminal point.
Sockets are integrated into the COMBICON connectors for
connecting HART (HHT) communicators.
The devices are certified for safety-related applications up
to SIL 2 in accordance with IEC/EN 61508.
Features
– 1-channel
– 0/4 mA ... 20 mA input, intrinsically safe, [Ex ia],
powered and not powered
– Measuring transducer supply voltage > 16 V
– 0/4 ... 20 mA output, active up to 1000  load or passive
– Bidirectional HART signal transmission
– Error indication according to NAMUR NE 43
– SIL 2 according to IEC 61508/EN 61508
– Installation in Ex zone 2 permitted
– Safe 3-way electrical isolation
– Power supply possible via DIN rail connector
– Plug-in connection terminal blocks, with either screw or
push-in connection technology
– Housing width of 12.5 mm
– Low power dissipation
– High transmission accuracy

105.00 EUR 105.0 EUR 105.00 EUR VAT Excluded

105.00 EUR VAT Excluded

Call for price

  • Condition

This combination does not exist.

Specifications

Condition New
