Digital I/O modules (output/input/mix): 8 , 16 , 32 , 64 I/O
Analog I/O modules (output/input/mix): 4 channel, 8 channel inputs(16-bit) /outputs(12-bit)
Temperature measurement modules: conversion time 200ms/channel, overall accuracy+/-0.1%, resolution0.1°C / 0.1°F(24-bit), RTD inputs: Pt100, Pt1000, Ni100, Ni1000, Cu50, Cu100, JPt100, LG-Ni1000, 0~300Ω or 0~3000Ω, thermocouple inputs: J, K, R, S, T, E, N, B type
Load cell modules: independent dual-channel high speed high accuracy load cell modules with 24 bit resolution with 2.5ms response rate
Communication modules (function cards): communication module and CPU support RS-232, RS-422, RS-485, Ethernet, CANopen communication

The Delta Compact Modular Mid-range PLC AS Series is a high performance multi-purpose controller designed for all kinds of automated equipment. It features Delta's self-developed 32-bit SoC CPUs for enhanced execution speed (40 k steps/ms) and supports up to 32 extension modules or up to 1,024 inputs/outputs. The AS series provides accurate positioning control for up to 8 axes via CANopen motion network and max. 6 axes via pulse control (200 kHz). It is widely used in diverse automated equipment such as electronics manufacturing, labeling, food packaging, and textile machines.

Compact Motion Control System

Provides EtherCAT, DMCNET and pulse train solutions for customers.
AHxxEMC-5A motion controller can be installed on the CPU slot of the specific motion backplane and
Compact motion control system does not support the expansion backplane.
Motion modules can be installed on the I/O slot of the motion backplane.
Motion control functions:
Performance:
- Pulse train module: Max. 1 MHz output
- DMCNET module: Min. synchronization time at 12 axes is 1 ms
- EtherCAT module: Min. synchronization time at 8 / 16 / 32 axes is 0.5 / 1 / 2 ms
Supports UD / PD / AB / 4AB input modes
Supports MPG inputs / E-Cam / G-code / 2 ~ 6 axes linear interpolation / 2 axes arc interpolation / 3 axes helical interpolation

The new generation AH Series PLC provides automation solutions for high-level applications.
The combination of modularized hardware structure, advanced functions, and the highly
integrated software provides a system solution for process control applications.
In addition to various function blocks, excellent performance, and an abundant selection
of extension modules, the AH Series PLC also provides exceptional system expandability
and a fully redundant solution, greatly reducing the system cost for a broad range of
applications.

Utilizes 32-bit processor
Excellent program execution speed：LD instruction execution speed 0.02µs
Max. I/O points:
- DIO: Max. 4,352 points
- AIO: Max. 544 channels
- RIO>100,000 points
Program capacity：Max 384k steps (1.5MB)
Data register (D+L) 256k words
CPU built-in with fully isolated RS-232/422/485、Mini USB、Ethernet、full-size standard SD(standard CPU)/SDHC(advanced CPU) card slot
Abundant selection of DIO modules, AIO modules, temperature control modules, network modules, pulse-train modules and DMCNET / EtherCAT motion control modules

EtherCAT Motion Control Products (Ethernet Control Automation Technology) is an open high performance Ethernet-based fieldbus system that provides high efficiency and good synchronization quality for automation control. With EtherCAT, Delta's EtherCAT motion control solution can achieve rapid and real-time multiple axes of motion control, and is capable of controlling up to 100 slave stations that enable a 64-axis motion control within 1ms cycle time. It also supports 35 homing modes, point-to-point position control, speed control and torque control. 2 groups of linear interpolation, 3 groups of arc, 2D and helical interpolation can be implemented synchronously.

The IEC61131 SoftPLC under Windows is also provided as one of the optional functions for programming flexibility and ease of scalability. Delta's EtherCAT motion control solution is optimized for the demanding applications of multiple axes, high speed and high precision for fast, high-performance machine control systems.

Delta High-Speed Motion Control System


is a high speed and real time communication system, capable of controlling up to 12 servo system units within 1ms simultaneously. It can accept double precision floating point values 64-bits wide and provide up to 1,280,000 pulse/rev resolution so the servo system can make accurate calculations and provide operation flexibility. 35 homing modes are provided. 12 servo system units or 4 groups, 3-axis helical and linear interpolation or 6 groups, 2-axis linear and arc interpolation can be implemented synchronously. It also supports absolute commands, incremental commands and T-curve / S-curve velocity profiles, built-in position, speed and torque control modes for different uses. Simply by connecting to servo motors, linear motors, digital inputs and outputs (DI/DO), analog inputs and outputs (AI/AO) and other control devices such as stepping motors and manual pulse generator (MPG), enabling fast and cost-effective communication and control is easy.

is the best integrated platform for multi-axis and synchronous motion control in a wide range of machine tools and industrial applications. It is also the ultimate solution that provides effortless wiring, enhanced stability, flexible extension ability and versatile operation for industry upgrading and adding value to the products.

Delta PC-Based Host Motion Controller AX-8 Series

The AX-8 Series uses the CODESYS motion control platform to achieve easy programming for complicated motion control settings. It supports EtherCAT communications for high speed motion control, and connects other equipment or software via OPC UA. It is suitable for high-end motion systems and fulfills smart manufacturing requirements.

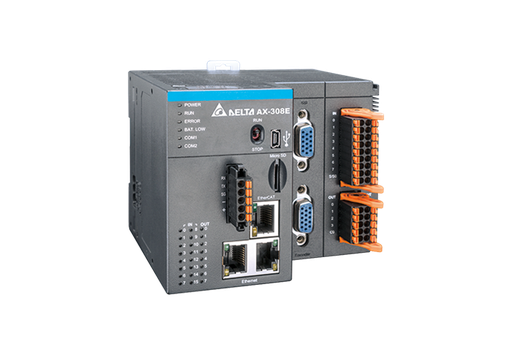

The AX-308E, is Delta’s CODESYS-based motion controller from the AS PLC family. The integrated EtherCAT interface enables it to control up to 8 servo drives as well as inverters, remote I/O modules and the 3rd party devices. Its multiple built-in communication protocols, such as Modbus TCP/RTU, Ethernet/IP and OPC UA even makes it ideal for Industry 4.0. All these features allow you to fulfill your demands in various applications.

Delta VFD Accessories AMD, BRAKE UNIT 200KW 690 1[VFDB6200]
Industrial Automation / VFD / VFD Accessories

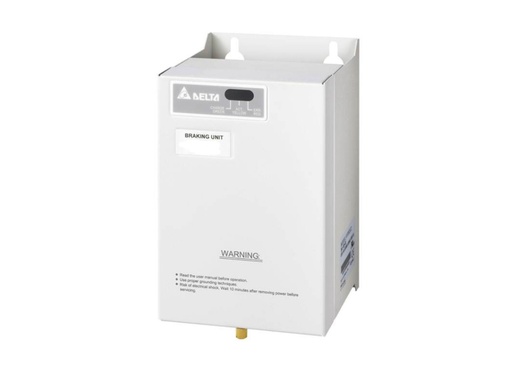

Delta VFD Accessories AMD, BRAKE UNIT 160KW 690 1[VFDB6160]
